iOS Deep Linking Integration - Version 2.0

Prerequisites

For Sandbox (UAT) Users should be onboarded on the iPOSpays sandbox(UAT) environment as a merchant and have a valid TPN.

For Production (Live) Users should be onboarded on the iPOSpays production environment as a merchant and have a valid TPN.

If you do not have a TPN, contact your ISO or support@dejavoo.io.


Set up Testing Environment

Before setting up the testing device

  • Use a separate device for testing.

  • Only use the credentials given to you throughout the testing process.

To get sandbox credentials, contact support@dejavoosystems.com

  • Avoid changing the account during testing.

  • Don't change the device's date and time.

  • These rules apply only to the testing environment, not production.

Watch This Video for a Visual Walkthrough of the Steps

To Develop iOS Application, Create a new iOS project or use the existing project and configure the below app setup.

Initially, we will use the new TPN. You must accept the Apple Tap-on-Phone Terms and Conditions before proceeding with the Tap-on-Pay transaction.



Supported Devices & Versions

  • OS Version Above 16.9
  • Tap to Pay on iPhone requires iPhone Xs or later.

The SDK offers a flexible, parameter-driven UI configuration, allowing customization of the user interface based on the enabled or disabled states of specific features. For example, you have the option to not display the Tip, Transaction Breakup & Customer Approval Screens on the iPOSgo! app’s UI.


Configure the URL Scheme

Keys invokeApplink and ogApplink are case sensitive.

  1. Demo App Setup
  1. iPOSgo! Setup
  1. Configure the SDK

Install the Applications

The Demo App and iPOSgo! applications are installed via a link, and a Diawi link is created for testing purposes. The following URL is used to obtain the device’s UDID: https://get.udid.io/ (opens in a new tab)

After obtaining the UDID, the source file of the demo application is shared for review and implementation reference.


TPN Register

The TPN register is used to download the parameters to configure the merchant configuration data from the backend application portal.

Always perform a parameter update in the iPOSgo! app after making any changes to parameter settings on the iPOSpays portal to ensure the latest configurations are applied.

Watch This Video for a Visual Walkthrough of the Steps

Input Request Parameters:

  1. To access the SDK Reader wrapper class, import DeepLinking, and initiate an instance of the class as follows:

import DeepLinking

  1. Create a variable to access the methods

var readerInstance = Wrapper()

API CALL

struct RegisterData: Register
{
var tpn: String
var merchantCode: String
}

let payload = RegisterData(tpn: "12345678912", merchantCode: "12345678912")

readerInstance.downloadParameter(param: payload)

Parameter Name

Parameters NameDescription
TPN A unique 12-digit code assigned to the device that processes the transaction.
merchantCode Unique code to identify the merchant

Delegate Response and Error Handling

To handle responses and errors from the SDK, implement the DLProtocolV2 delegate methods as shown below:

extension ViewController: DLProtocolV2 {

    func didReceiveRespV2Error(err: String?) {
        print(">>>>>>ERROR :", err ?? "")
    }

    func didReceiveV2Response(success: URL?) {
        print(">>>>>url", success ?? "")
    }

    func didReceive_TransactionResponse(res: String?) {
        print(">>>res", res ?? "")
    }

}

Transaction Response Structure

The didReceive_TransactionResponse(res:) method returns the following response, which allows the user to track transaction details:

transactionData: {
  "TPN": "794525543578",
  "TimeStamp": "20250602115852",
  "TXN Ref No": "830266506984"
}
  • This response provides essential metadata for the transaction that was just processed.

  • It includes:

Parameters NameDescription
TPN A unique 12-digit code assigned to the device that processes the transaction.
TimeStamp The exact date and time of the transaction, in YYYYMMDDhhmmss format.
TXN Ref No A unique reference number assigned to the transaction.

These values can be used to log, track, or reconcile transactions.

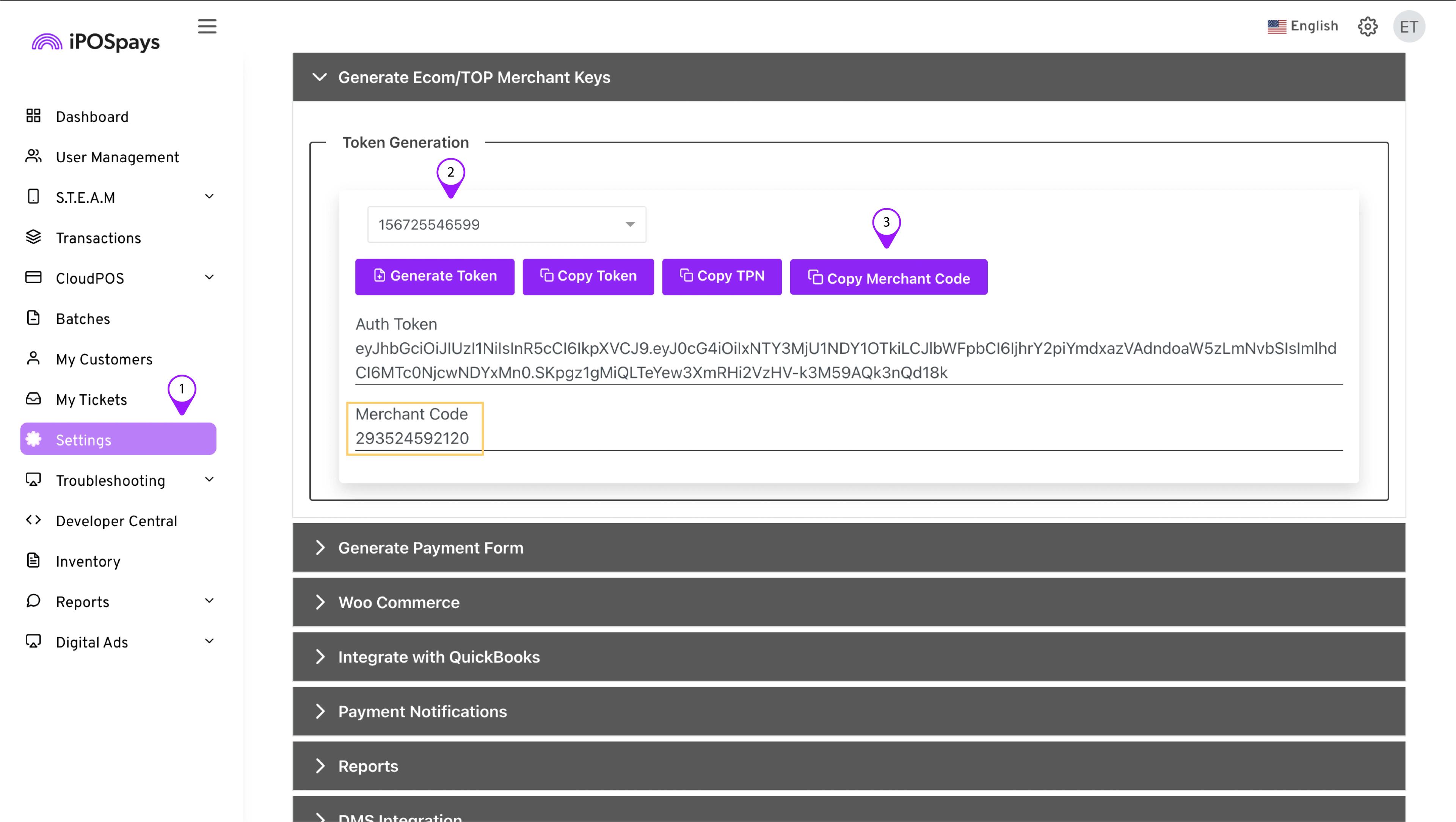

To obtain the Merchant Code::

  • Log in to the iPOSpays portal using a merchant account.

  • Go to Settings → Generate ECOM/TOP Merchant Keys.Choose a Tap on Phone (TOP) TPN from the drop-down menu → copy the merchant code and save it.

Error message alerting users to incorrect merchant code entry

Perform Transactions

This API is used to invoke applications to perform the transaction.

It supports:

  • SALE

  • REFUND

  • PRE AUTH

  • TICKET

  • VOID

  • BATCH SETTLEMENT

  • For Sale, Refund, and Pre Auth transactions, ensure that you use the same startTransaction to call their respective APIs.

  • The tranType parameter must be adjusted according to the transaction type.

Initiate Transactions

Use the deepLink.startTransaction to initiate the transactions.

API Call Examples

The structure and API call method are consistent for Sale, Refund, and Pre Auth transactions. You can use it for all three transaction types.

Example of the default structure and API call method:
// Define the PayloadParameter struct
struct TxnData: PayloadParameter {
    var amount: String
    var tipAmount: String?
    var feeAmount: String?
    var currencyCode: CurrencyCode
    var tranType: TransType
    var showTipScreen: Bool?
    var showBreakUpScreen: Bool?
    var showApprovalScreen: Bool?
}

// Payload of saleStruct
let sale = TxnData
        (
          amount: 1,
          currencyCode: .USD,
          tranType: .SALE,
          tipAmount: 1.00, //Optional
          feeAmount: 5.00, //Optional
          showTipScreen: true, //Optional
          showBreakUpScreen: true, //Optional
          showApprovalScreen: true //Optional
        )

// Start the transaction using this method.
readerInstance.startTransaction(param: sale, delegate: self)

Transaction Example Using Deep Linking V2

Sale Transactions

A Sale transaction is the most common type of payment operation performed. It represents a standard purchase where the customer pays for goods or services using a supported payment method, such as a credit card, debit card, or tap to pay.

Import the payload provided below into your code to perform sale transactions.

// Payload of saleStruct
let sale = TxnData
        (
          amount: 1,
          currencyCode: .USD,
          tranType: .SALE,
          tipAmount: 1.00, //Optional
          feeAmount: 5.00, //Optional
          showTipScreen: true, //Optional
          showBreakUpScreen: true, //Optional
          showApprovalScreen: true //Optional
        )

// Start the transaction using this method.
readerInstance.startTransaction(param: sale, delegate: self)

Below is the tabular representation of the Sale Struct payload:

Parameters NameTypeDescriptionSample
tranType * EnumSpecifies the type of transaction, such as SALE..SALE
amount * StringTransaction amount10.00
tipAmount StringTip amount (optional)1.00
feeAmount DecimalThe additional fee amount, if applicable.5.00
currencyCode * EnumTransaction currency.usd
showTipScreen BoolDetermines whether the tip input screen should be displayed.TRUE
showBreakUpScreen BoolDetermines whether the amount breakdown screen should be displayed.TRUE
showApprovalScreen BoolDetermines whether the approval confirmation screen should be displayed.TRUE

Refund Transactions

A standalone Refund transaction is used to return funds to a customer for a previously completed Sale transaction. This type of refund is not linked to the original transaction via the RRN (Retrieval Reference Number). Instead, it is initiated as a separate transaction, typically performed after the batch containing the original sale has been settled.

Refunds are commonly used when:

  • A product is returned

  • A service is canceled

  • An overcharge or billing error needs to be corrected

Because it occurs post-settlement, a standalone refund ensures that the original sale has already been finalized before reversing the amount.

Import the payload provided below into your code to perform sale transactions.

// Refund Transaction
let refund = TxnData(
    amount: "10.00",
    currencyCode: .USD,
    tranType: .REFUND,
    showApprovalScreen: true
)

// Start the transaction using this method.
readerInstance.startTransaction(param: refund, delegate: self)

Pre Auth Transactions

A Pre-Authorization (Pre-Auth) transaction is used to place a temporary hold on a customer’s funds without immediately capturing the payment. This is commonly used in industries such as hospitality, car rentals, or services where the final amount may vary at checkout.

The transaction must later be completed using a Ticket transaction, where the final amount (including tips, fees, or taxes) is captured.

Import the payload provided below into your code to perform Pre Auth transactions.

// Pre Auth Transaction
let preAuth = TxnData(
    amount: "10.00",
    currencyCode: .USD,
    tranType: .PRE_AUTH,
    showApprovalScreen: true
)

// Start the transaction using this method.
readerInstance.startTransaction(param: preAuth, delegate: self)

Ticket Transactions

A Ticket transaction is used to finalize and capture a previously initiated Pre-Authorization (Pre-Auth). Once the goods or services have been delivered and the final amount is confirmed, the merchant uses the Ticket function to complete the payment.

To perform a Ticket transaction, the RRN (Retrieval Reference Number) from the original Pre-Auth transaction is required. This allows the system to locate and complete the correct authorization.

Import the payload provided below into your code to perform Ticket transactions.

// Define the Ticket struct
struct TicketTxnData: TicketPayloadParameter {
    var amount: String?
    var tipAmount: String?
    var feeAmount: String?
    var currencyCode: CurrencyCode
    var tranType: TransType
    var showTipScreen: Bool?
    var showBreakUpScreen: Bool?
    var showApprovalScreen: Bool?
    var rrn: String
}

// Payload of Ticket
let ticket = TicketTxnData
      (
        currencyCode: .USD,
        tranType: .TICKET,
        amount: 10.00, //Optional
        tipAmount: 1.00, //Optional
        feeAmount: 1.00, //Optional
        showTipScreen: false, //Optional
        showBreakUpScreen: true, //Optional
        showApprovalScreen: false, //Optional
        rrn: "123445667788"
      )

// Start the transaction using this method.
readerInstance.startTicket(params: ticket, delegate: self)

Tabular Representation of the Ticket Payload

Parameters NameTypeDescriptionSample
tranType * EnumSpecifies the type of transaction, e.g., TICKET..TICKET
amount * StringThe total transaction amount.10.00
tipAmount StringAdditional tip amount, if applicable.1.00
feeAmount StringAdditional fee amount, if applicable.2.00
currencyCode * EnumThe currency in which the transaction is processed..usd
showTipScreen BoolDetermines whether the tip input screen should be displayed.FALSE
showBreakUpScreen BoolDetermines whether the amount breakdown screen should be displayed.TRUE
showApprovalScreen BoolDetermines whether the approval confirmation screen should be displayed.FALSE
rrn * StringUnique identifier to track the transaction from TXN response123536758578

Void Transactions

A Void transaction is used to cancel a sale or refund before it has been settled. Unlike a refund, which returns funds after a transaction has been finalized, a void stops the transaction from completing and prevents it from appearing in the customer’s bank account.

To void a specific transaction, the RRN (Retrieval Reference Number) of the original sale or refund is required. This ensures the app targets and cancels the correct transaction before it is submitted for settlement.

Import the payload provided below into your code to void a transaction.

// MARK: - PayloadParameter [Void]
struct VoidTxnData: VoidPayloadParameter {
    var rrn: String,          // Reference Retrieval Number
    var tranType: TransType,  // Transaction Type
    var showApprovalScreen: Bool? //Optional
}

let void = VoidTxnData(
    rrn: "502213502779",      // Sample RRN
    tranType: .VOID,         // Void transaction type
    showApprovalScreen: true
)

// Start the Void transaction using this method.
readerInstance.startVoid(params: void, delegate: self)

Parameter Name

Parameters NameTypeDescriptionSample
rrn * StringUnique transaction ID502213502779
tranType * EnumTransaction type.VOID
showApprovalScreen BoolDetermines whether the approval confirmation screen should be displayed.FALSE

Batch Settlement

Batch Settlement is the process of finalizing and submitting all approved transactions collected over a period (typically a day) to the payment processor for funding. Once a batch is settled, the transactions are sent for clearing, and the merchant’s bank account is credited accordingly.

Use startBatchSettlement for batch settlements:

API Call Example

deepLink.startBatchSettlement( delegate: self)

Sample Response for Batch Settlement:
{
  "transaction_title": "settlements",
  "Tpn": "794524937054",
  "transaction_type": 7,
  "batch_no": 243,
  "timeStamp": "20241219114620",
  "transaction_id": "84566476174593705420241219114620",
  "status": "BATCH SETTLED",
  "statusCode": "00"
}

Sample Responses

Transaction Response
{
  "Spin_Response": {
    "RefId": "688041066395",
    "AuthCode": "DSC380",
    "PNRef": "400907500270",
    "TransNum": "4",
    "ResultCode": "0",
    "Message": "APPROVED",
    "RespMsg": "APPROVAL DSC380",
    "PaymentType": "credit",
    "ExtData": {
      "Amount": "10.00",
      "Tip": "1.00",
      "Fee": "0.40",
      "BatchNum": "121",
      "AcntLast4": "5859",
      "AcntFirst4": "3530",
      "FeeLabel": "Custom Fee",
      "BaseAmount": "10.00",
      "TaxCity": "1.00",
      "Tax1Label": "Local Tax",
      "TaxState": "1.00",
      "Tax2Label": "State Tax",
      "RespCode": "00",
      "RRN": "400907500270",
      "TraceNum": "4",
      "HostTxnId": "123456789012345",
      "txnId": "00000433772392582420240109012159",
      "TxnType": "1",
      "EntryType": "tap-on-phone",
      "TotalAmt": "13.40",
      "TaxAmount": "2.00",
      "txnLabel": "Sale",
      "networkMode": "WIFI",
      "DateTime": "20240222173537"
    },
    "iPOSToken": "CE268D77935FDBF3F9C72E8894A1F410B3A2856F37999A88F347B002BB5E3AD7",
    "HostResponseCode": "00",
    "HostResponseMessage": "APPROVAL DSC380"
  }
}
Batch Settlement Response

{
  "transaction_title": "settlements",
  "Tpn": "794524937054",
  "transaction_type": 7,
  "batch_no": 243,
  "timeStamp": "20241219114620",
  "transaction_id": "84566476174593705420241219114620",
  "status": "BATCH SETTLED",
  "statusCode": "00"
}

Transaction Response Details

FieldTypeDescriptionSample
RefId * stringUnique reference ID assigned to the transaction.688041066395
AuthCode * stringUnique transaction hash key.83398129492534106720240723110923
PNRef * stringRRN number used to track transaction details.400907500270
TransNum * stringInvoice number4
ResultCode * stringFor a successful transaction, the code is 0 or 00. If the code is anything else (!= 0), the transaction is considered a failure.00
Message * stringGeneral message from the payment processor after completing the transaction.APPROVED
RespMsg * stringAdditional processor message, sometimes with more detail.APPROVAL DSC380
PaymentType * stringIndicates whether the transaction was made via credit or debit.credit
CardType * stringThe type of card used in the transaction.VISA, MASTERCARD
Amount * stringBase transaction amount before taxes, tips, or fees.10.00
Tip stringTip amount, if tip was enabled for the TPN and applied.$1.00
TaxCity stringLocal tax amount, if local tax is enabled. Local fee may also apply if configured.2.00
Tax1Label stringLabel for the local tax (Tax 1), set in edit parameters on the portal.Local Tax
TaxState stringState tax amount, if state tax is enabled. A state-level fee may also apply if configured.1.00
Tax2Label stringLabel for the state tax (Tax 2), set in edit parameters on the portal.State Tax
Fee stringFee amount applied to the transaction, as configured in the portal under Edit Parameters.0.40
FeeLabel stringLabel assigned to the custom fee in the portal (e.g., “Custom Fee”).Custom Fee
BaseAmount * stringThe original transaction amount before taxes, tips, and fees.10.00
BatchNum * stringThe batch number the transaction belongs to. Batches are used for settlement.121
AcntLast4 * stringLast four digits of the customer’s card number used in the transaction.5859
AcntFirst4 stringFirst four digits of the card number used in the transaction.3530
TotalAmt * stringTotal amount charged for the transaction, including taxes, tip, and fee.13.40
TaxAmount stringCombined total of applicable taxes (e.g., city, state).2.00
RespCode * stringFor a successful transaction, the code is 0 or 00. If the code is anything else (!= 0), the transaction is considered a failure.00
RRN * stringRetrieval Reference Number (RRN) for the transaction, used for tracking and reconciliation.400907500270
TraceNum * stringThe invoice or trace number for the transaction. Typically used for internal tracking.4
HostTxnId * stringTransaction ID assigned by the acquiring host system.123456789012345
txnId * stringUnique transaction ID used for tracking.00000433772392582420240109012159
TxnType * stringIndicates the type of transaction (e.g., 1 = Sale, 2 = Refund, etc.).1
EntryType * stringHow the card data was entered (e.g., tap-on-phone, chip, manual entry).tap-on-phone
txnLabel * stringA short text label indicating the transaction type (e.g., sale, refund).sale
networkMode stringType of network used by the device at the time of transaction (e.g., WIFI, LTE, Ethernet).WIFI
DateTime * stringTimestamp of the transaction in YYYYMMDDhhmmss format.20240222173537
iPOSToken * stringA unique token generated by the iPOS system that can be used to reference the transaction securely.CE268D77935FDBF3F9C72E7
HostResponseCode * stringThe host system’s response code. For a successful transaction, the code is 0 or 00. If the code is anything else (!= 0), the transaction is considered a failure.00
HostResponseMessage * stringText response from the host system indicating transaction status.APPROVAL DSC380

Support

Email us directly at devsupport@denovosystem.com with any questions or suggestions.
